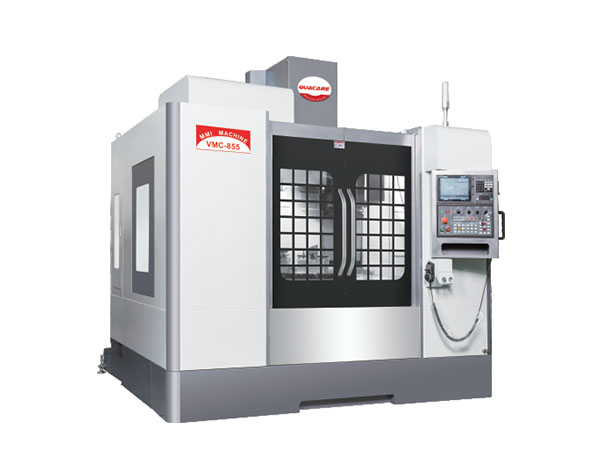

Product details


1.All three axes use high rigidity roller linear guide rails with good bearing capacity, high transmission precision and excellent precision  retention. It can meet the requirements of rough machining and fine machining.

2.High precision and high rigidity spindle head can bear radial and axial heavy cutting and long-time cutting. It can also maintain a high  degree of machining accuracy.

3.All three axes use high-precision precision ball screws with double nut preload, together with the locking and pulling design of the  support base at both ends. It can eliminate the backlash in transmission and pre-compensate for the error caused by temperature  rise to ensure the positioning accuracy.



Three-Axis Standard Roller Linear Rail


High load bearing capacity and strong cutting resistance to  vibration;Low friction at high speed, responsive acceleration and  high positioning accuracy.



Spindle Cooling System


The spindle head has a built-in independent cooling system to  control the spindle head temperature in a reasonable range and  reduce the thermal extension.

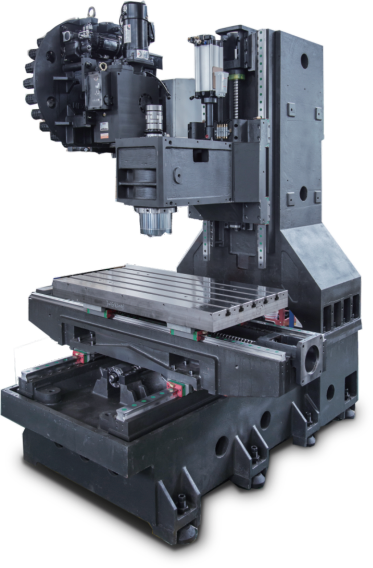

MACHINE TOOL FEATURES


Reinforced Structural Parts

The column castings are made of high-grade resin sand. The  column span is large and the installation is secure. The internal  reinforcing ribs are reasonably structured, which can easily meet  the machining requirements of different industries.


Significantly Improved Vibration Damping  Performance

The base castings are made of high-grade resin sand. After  demolding, they are subjected to artificial aging treatment and  vibration aging treatment to eliminate internal stresses and maintain  excellent precision retention. Cross-shaped reinforcing ribs are used  internally with reasonable layout.





ANNULAR SPRAY DEVICE


The spindle can be equipped with an optional  annular spray device, which helps to cool the tool  during drilling and tapping, and also helps in chip  removal.







Technical parameters of vertical machining center





Standard Configuration


Mitsubishi or FANUC control system,Electrical box heat exchanger,Ethernet、LED work light,Mobile handwheel、Fully enclosed cover,Automatic lubrication system,Rigid tapping device,24T Disc tool magazine,Spindle oil cooler、Cutting fluid system,Retractable chute steel cover,Cutting fluid tank and filter,Adjusting screw and washer,Working status indicator,Isolated transformer,Operating manual、Toolbox ,Shadowless lighting device



Optional Parts


Fourth axis、Gearbox,Automatic tool length measuring instrument,BBT40/HSK63A ,Cradle type 5-axis,Crawler-type chip remover with chip collector ,Automatic safety door,Oil-water separator,Three-axis optical ruler,Spindle center outlet ,Side milling head (Manual device),High pressure chip flushing device
