Heavy Duty Roller Linear Guide Rail
Taiwan HIWIN/PMI P-class rollers or Germany Rexroth ball linear rails with X/Y/Z-axis linear rail width of 55/45/55mm and Z-axis hard rail (optional).
The three axes adopt Taiwan HIWIN/PMI Φ50*10mm C3 screws with pre-drawn design at both ends to eliminate backlash. Japanese NSK NICHAP4 ball screw bearings are used with 6-bearing joint design for X, Y, and Z axes. The the screws are pre-drawn to prevent thermal deformation and provide excellent positioning accuracy and rigidity.

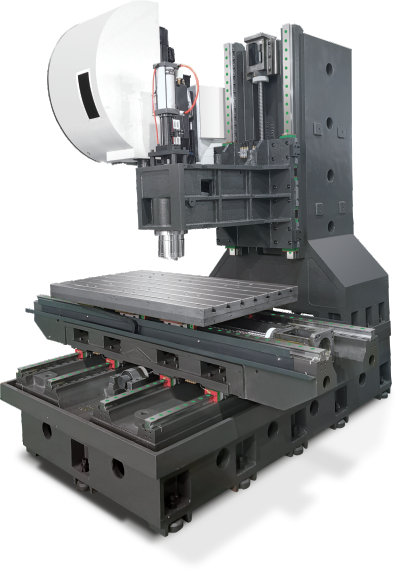

#Herringbone" Column Structure
Proven and stable "herringbone" column structure is used to strengthen the rigidity and resistance to bending and torsion performance. Ultra-wide base is used to lower the center of gravity of the machine tool to enhance its stability.
Three-Axis Standard Roller Linear Rail
High bearing load and cutting vibration resistance, optional ball linear rail, low friction at high speed, responsive acceleration and high positioning accuracy. The X and Z-axis adopts 6 sliders and Y-axis adopts 8 sliders to enhance rigidity.
MACHINE TOOL FEATURES
Electrical Cabinet
The heating appliances and resistance radiator are separated without air convection to prevent dust, oil mist and moisture from entering the electrical cabinet. The temperature of the electrical cabinet is stable to improve the working efficiency of the machine and the life span of electronic elements. The system battery is upgraded with up to 5 years of life.
High Performance and High Accuracy Spindle
The high-performance and high-precision spindle can work for a long time with excellent precision retention while its durability and high-speed machining performance provide users with excellent machining quality.

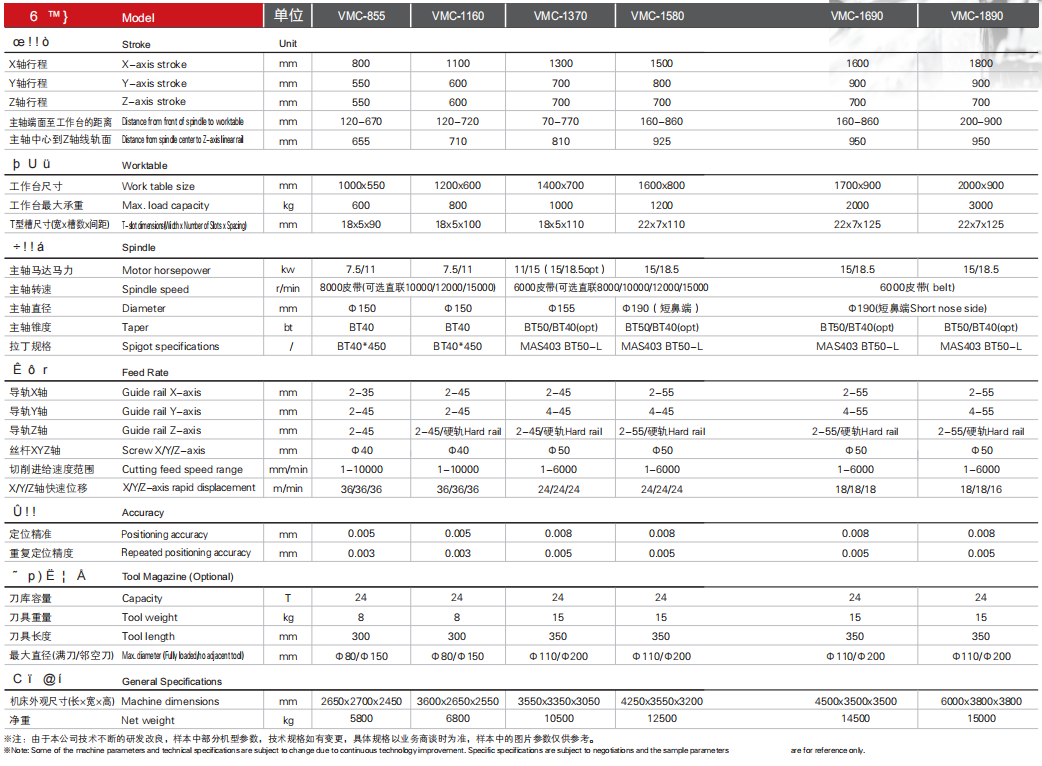

Technical parameters of vertical machining center
