Product details

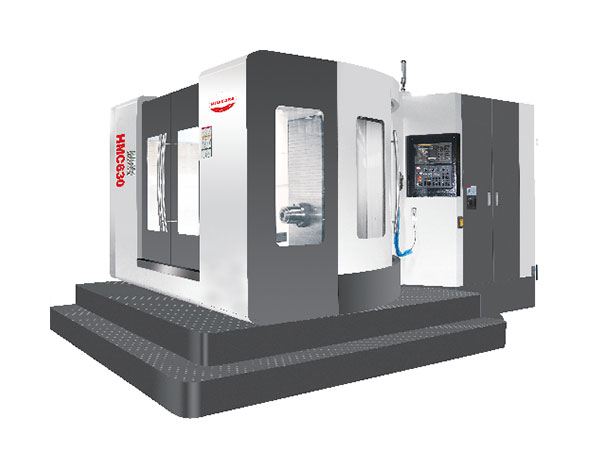

  1. The horizontal machining center has a high speed, high precision and highly reliable structure with high rigidity, high power, high torque  and heavy cutting characteristics of similar machines. High-productivity and high-precision machining performance can be fully  achieved.

  2. Powerful cutting capabilities combined with superior accuracy and performance make milling and boring operations simple and easy.

  3. The support parts (motor base and bearing seat) of the three-axis feed system are completely machined, which greatly improves the  assembly efficiency and quality, and the accuracy retention is greatly improved.



MACHINE TOOL FEATURES


Optional Double Station630.1.png


C3 LARGE THRUST SCREW

The X and Z-axis use Φ63 ground C3 high precision large thrust screw with groups of imported angular  contact bearings, double-side support and pre-stretching to ensure transmission accuracy.

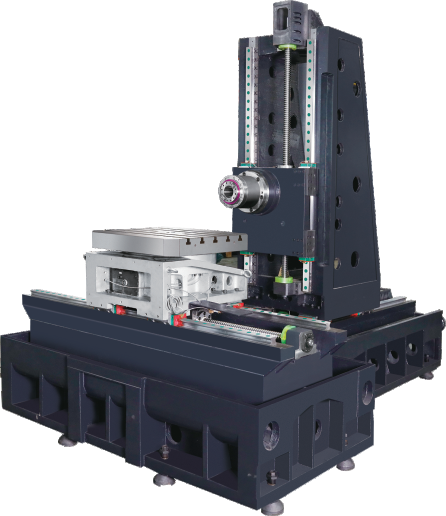

ROBUST WORKTABLE

It adopts steady T-bed structure with widened lower slide saddle to improve the rigidity and good  stability for rapid movement. The base casting is machined by high precision five-sided gantry, which  can complete milling, drilling and tapping of five sides with only one clamping. It reduces the clamping  error and improves the machining accuracy.


HIGH POWER SPINDLE

Taiwan high precision spindle is  used with standard speed  6,000rpm.


Table bearing: 1200kg

table size: 630 × 630mm

three-axis displacement: 24m/min

spindle speed: 6000rpm,

knife storage capacity: 24pcs

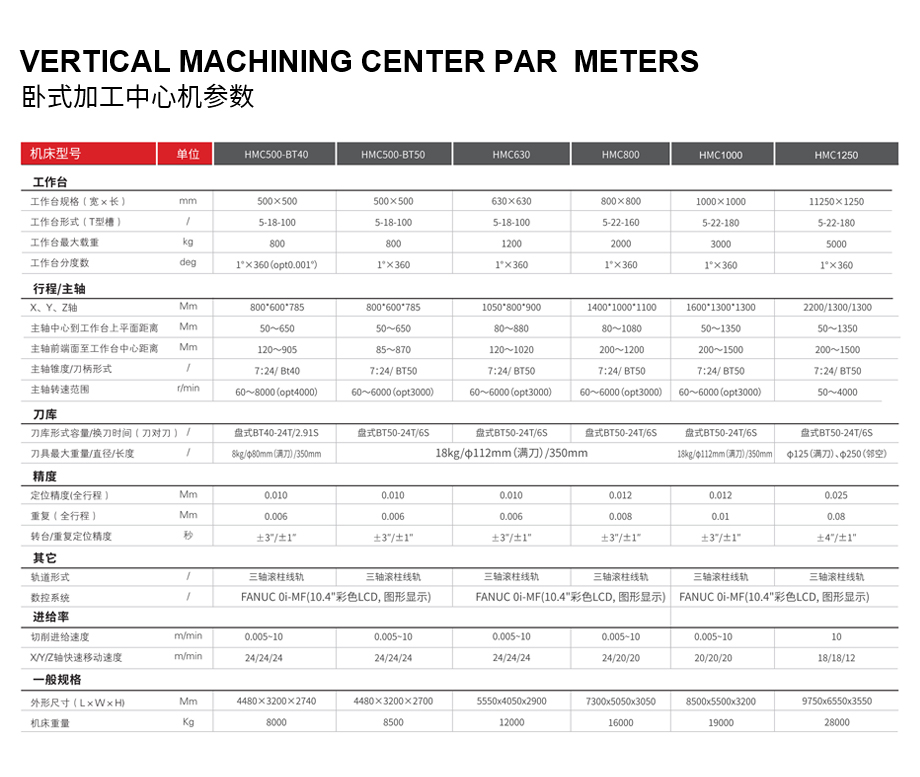

TECHNICAL PARAMETERS OF HORIZONTAL MACHINING CENTER
