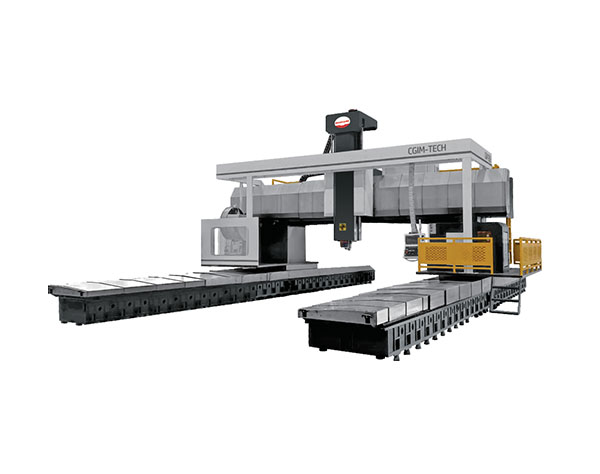

Product details

1.With the high rigidity and heavy cutting structure design, the whole series of machines have high precision of five-sided  machining centers and all-round high-efficiency cutting is achieved with robust structure and superior geometrical precision.

2.Full-automatic five-sided machining capability and full-automatic additional head change.

3.The X and Y-axis use high rigidity and high precision linear slide rails. X-axis is supported by four symmetrical rails.

4.The Z-axis is designed with high rigidity hard rail, heat-treated and then precision ground, suitable for heavy cutting.

5.All structural parts are analyzed by using finite element method (FEM). They are featured by lightweight and reasonable design  to ensure the optimal structural rigidity of the whole machine.

THREE-AXIS RAIL DESIGN: LINEAR RAIL LINEAR RAIL/HARD RAIL

The X and Y-axis use double-loaded roller-type linear  rails with track width of 55mm. The Z-axis uses hard rails with good vibration  absorption and wear resistance.

STRUCTURAL CHARACTERISTICS  OF CROSS RAIL COLUMN

The cross rail is cast as one piece with  high rigidity cross ribs at the front and  box structure at the rear. They are evenly  distributed at the rear cross rail. The  bridge type arch design can effectively  support the vertical gravity and lateral  resistance for stable cutting.

SPINDLE GEARBOX

The spindle head adopts quadrilateral high rigidity design with square structure and 500×500rm. It has enough strength  and not easy to interfere with the machined workpiece. The slide rail has the ladder-type cladding design and the  spindle center is closer to the cross rail with stable cutting capability. The gear box and spindle are machined as one  piece, which has a short transmission distance for cutting torque, strong output force, stable cutting resistance and low  noise for long time operation.

Table bearing: 5ton/cm

table size: 16,000 × 5,000 mm

triaxial stroke: 16,000 × 6,500 × 1,500 mm

spindle speed: 6,000 rpm

knife storage capacity: 24 pcs

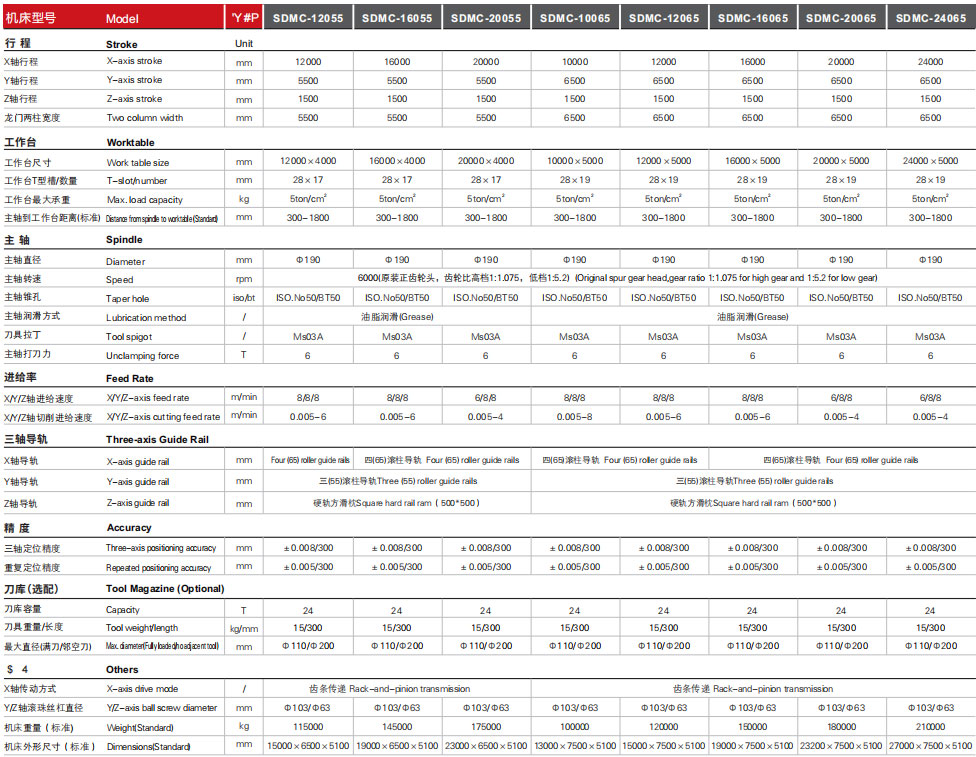

PARAMETERS OF MOVABLE COLUMN GANTRY MACHINING CENTER

STANDARD CONFIGURATION
