Product details

1.HIGH PERFORMANCE AND  EFFICIENCY

2.Different product lines, modular design  and complete specifications with multiple  types of automatic changing heads and  vertical/horizontal tool changers. Full  automation, high efficiency and high  productivity can be achieved.

3.The X and Y-axis use high-rigidity roller-type linear slide rails and the axial system can bear heavy load and move fast.

4.The key contact surfaces are carefully hand-scraped to ensure the ultimate accuracy and load balance.

5.All the structural parts have been analyzed by using FEM method and they are featured by lightweight and reasonable  design to ensure the optimal structural rigidity of the whole machine.

6.Modular spindle design can be coupled with gear spindle or direct drive spindle to meet the machining requirements of  precision molds or parts.

7.Widely used in automobile, aerospace, shipbuilding, power generation, rail transportation, mold and machinery industries,  and sold well at home and abroad.

8.Strict parts assembly and inspection process, advanced inspection  instruments and precision assembly ensure that each machine has  the best working accuracy.

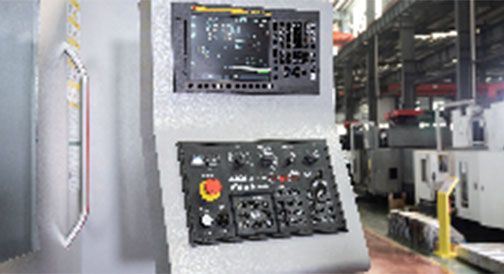

ROTATABLE CONTROL BOX:

The control panel of the pedestal-type rotatable  control box and the liftable handwheel operation  box are very convenient for the operator to  operate in any position and the foot switch can  be used to easily clamp or release the tool on  the spindle head.

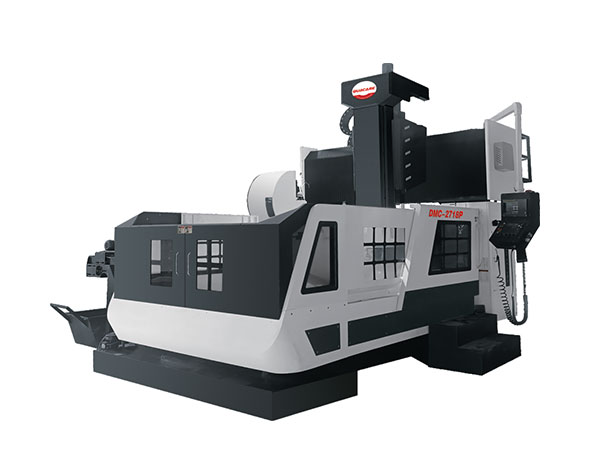

Table bearing: 6000kg,

table size: 1600 × 2500mm

triaxial stroke: 2700 × 1800 × 1000mm

spindle speed: 6000rpm

knife storage capacity: 24pcs.

PARAMETERS OF HIGH-PERFORMANCE GANTRY MACHIN ING CENTER

STANDARD CONFIGURATION
